[foldable] Package reference instead of project reference

[conceptdev]

Reverts #5891 and converts Foldable to a package, following instructions in #5894

Description of Change

1. Update Controls.Foldable.csproj to make NuGet
2. Restore commented-out foldable code in the Maui.Controls.Sample project
3. Update Maui.Controls.Sample.csproj to use a PackageReference
4. Remove Foldable.csproj reference from Samples.slnf

Issues Fixed

#5894 where a GENERATEPROJECTPRIFILE : error : PRI175: 0x80073b0f - Processing Resources failed with error: Duplicate Entry' was being generated in the CI builds, assumed to be because the Foldable project was being referenced and bringing in all its dependencies as duplicates...

[mattleibow]

😍

[rmarinho]

         D:\a\_work\1\s\src\Controls\samples\Controls.Sample\Maui.Controls.Sample.csproj : error NU1604: Project dependency Microsoft.Maui.Controls.Foldable does not contain an inclusive lower bound. Include a lower bound in the dependency version to ensure consistent restore results. [D:\a\_work\1\s\Microsoft.Maui.Samples.slnf]
         D:\a\_work\1\s\src\Controls\samples\Controls.Sample\Maui.Controls.Sample.csproj : error NU1101: Unable to find package Microsoft.Maui.Controls.Foldable. No packages exist with this id in source(s): D:\a\_work\1\s\bin\dotnet\library-packs, darc-pub-dotnet-runtime-a21b9a2, dotnet-eng, dotnet-public, dotnet6, dotnet7, skiasharp [D:\a\_work\1\s\Microsoft.Maui.Samples.slnf]
         D:\a\_work\1\s\src\Controls\samples\Controls.Sample.SingleProject\Maui.Controls.Sample.SingleProject.csproj : error NU1604: Project dependency Microsoft.Maui.Controls.Foldable does not contain an inclusive lower bound. Include a lower bound in the dependency version to ensure consistent restore results. [D:\a\_work\1\s\Microsoft.Maui.Samples.slnf]
         D:\a\_work\1\s\src\Controls\samples\Controls.Sample.SingleProject\Maui.Controls.Sample.SingleProject.csproj : error NU1101: Unable to find package Microsoft.Maui.Controls.Foldable. No packages exist with this id in source(s): D:\a\_work\1\s\bin\dotnet\library-packs, darc-pub-dotnet-runtime-a21b9a2, dotnet-eng, dotnet-public, dotnet6, dotnet7, skiasharp [D:\a\_work\1\s\Microsoft.Maui.Samples.slnf]

[conceptdev]

Latest commits build a NuGet package in the /artifacts/ folder (thanks to Microsoft.Maui.Packages.slnf), but I'm not sure the sample will be able to load it...

[conceptdev]

Current error D:\a\_work\1\s\src\Controls\samples\Controls.Sample\Maui.Controls.Sample.csproj : error NU1101: Unable to find package Microsoft.Maui.Controls.Foldable. No packages exist with this id in source(s): D:\a\_work\1\s\bin\dotnet\library-packs, darc-pub-dotnet-runtime-a21b9a2, dotnet-eng, dotnet-public, dotnet6, dotnet7, skiasharp [D:\a\_work\1\s\Microsoft.Maui.Samples.slnf]

There IS there is a Microsoft.Maui.Controls.Foldable.nupkg NuGet, but it's in
D:\a\_work\1\s\artifacts\nuget
and the Samples project is looking in
D:\a\_work\1\s\bin\dotnet\library-packs

Need to figure out how to add another NuGet source for the sample project OR get the Foldable NuGet into the library-packs directory...

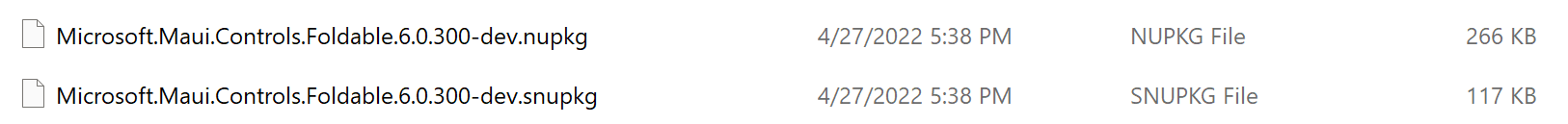

UPDATE: confirmed that manually dropping the nupkg into bin\dotnet\library-packs enables the samples build to succeed.

[conceptdev]

It feels like what's happening on the server must be different to what's happening locally. Will probably roll-back these YAML changes that are trying to copy the nupkg around and revisit assumptions about what files are where 😬

The build logs show the Download Packages step successfully grabs the Foldable NuGet:

Downloaded nuget/Microsoft.Maui.Controls.Foldable.6.0.300-rc.3.7406.nupkg to D:\a\_work\1\s\artifacts\nuget\Microsoft.Maui.Controls.Foldable.6.0.300-rc.3.7406.nupkg

But the Build .NET 6 samples step isn't finding it

error NU1101: Unable to find package Microsoft.Maui.Controls.Foldable. No packages exist with this id in source(s): D:\a\_work\1\s\bin\dotnet\library-packs, darc-pub-dotnet-runtime-a21b9a2, dotnet-eng, dotnet-public, dotnet6, dotnet7, skiasharp [D:\a\_work\1\s\Microsoft.Maui.Samples.slnf]

even though the added PowerShell command seems like it should be copying it across

Move-Item -Path artifacts\nuget\*.nupkg -Destination artifacts -Force
Copy-Item -Path artifacts\*.nupkg -Destination "bin\dotnet\library-packs" -Filter *Foldable* -Force

[mattleibow]

Is it in the artifact? Can you confirm in the artifact on devops or in the copy logs?

Maybe add a dir artifacts/* to a step after the download

[conceptdev]

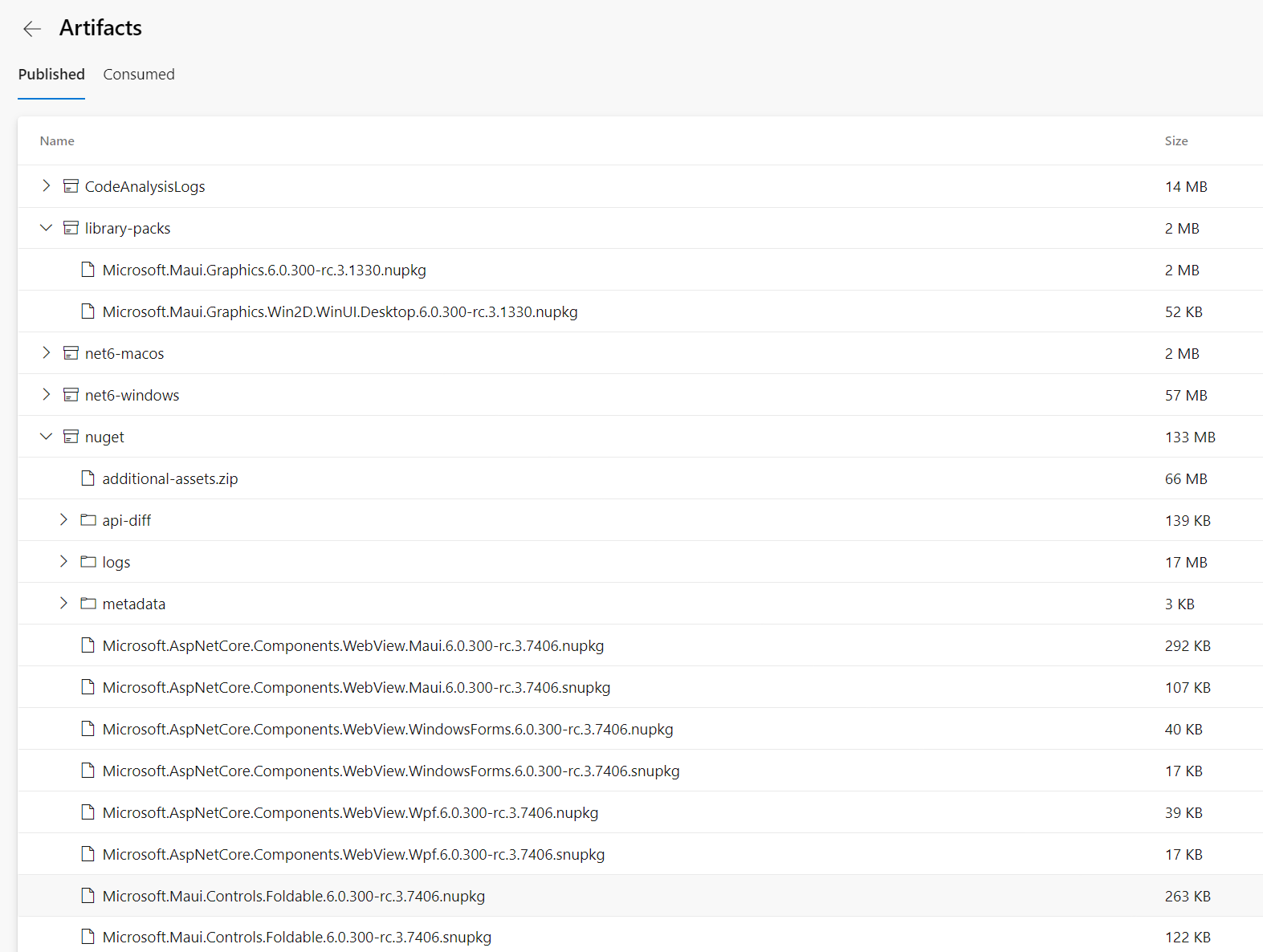

The Foldable NuGet is definitely in the nuget artifact at the end!

[mattleibow]

I don't see the artifacts folder in here:

error NU1101: Unable to find package Microsoft.Maui.Controls.Foldable. No packages exist with this id in source(s): D:\a_work\1\s\bin\dotnet\library-packs, darc-pub-dotnet-runtime-a21b9a2, dotnet-eng, dotnet-public, dotnet6, dotnet7, skiasharp [D:\a_work\1\s\Microsoft.Maui.Samples.slnf]

I got a feeling we need an extra step in the samples to copy nuget-only packages into a folder and then add that to the samples nuget.config. This can probably be done by copying the repo's nuget.config to a temporary location and then adding the path to the new artifacts folder and then setting the RestoreConfigFile property to the path of the nuget.config: https://github.com/dotnet/maui/blob/main/eng/cake/dotnet.cake#L71

I am also thinking to prevent accidental issues, we should also make a new folder in the temp and copy the 2 foldable files in there and make the nuget.config point to that. By doing that we can make sure we get a build fail if suddenly a package is used instead of the workloads.

[conceptdev]

@mattleibow yeah, that's why I was trying to copy the Foldable NuGet into bin\dotnet\library-packs, because it's already in the sources search list for the Samples project 😬

Still not sure why it wasn't working on the server, but either way it was a little hacky and your explanation/suggestion sounds more robust.

[mattleibow]

After such a long time, we eventually got a bunch of things to make all this work much better.

[mattleibow]

WARNING! This will produce a nupkg that will be published to nuget.org

fixed now

[rmarinho]

@conceptdev is this ready to be merged?

[conceptdev]

I have not had a chance to test the NuGet. Will try to get it done today and approve if it works, thanks.

[rmarinho]

@conceptdev did you had a chance to try it ? thanks

[conceptdev]

@rmarinho I started testing this today, but needed to rebuild my VS2022 config, workloads, etc as nothing initially worked. Will finish off tomorrow and let you know how it goes.

[conceptdev]

UPDATE: I was able to test the code in this branch and it still seems to work 💯 i.e. it detects the hinge when present and snaps the panes to it.

RE: Matt's warning above about generating a NuGet - I'm assuming it will be a "preview" NuGet? What release date would we be aiming for with this package? I recall when working with Shane that there might still be some edge cases we need to test/verify.

[mattleibow]

Right now, it will have the same branding and version as maui itself.

So in this merge world, it probably will be released as RC 1.

[conceptdev]

@mattleibow thanks for the clarification! In that case, I wonder if the PMs should chime in as this sounds like a bit of a messaging decision as well as a technical one?

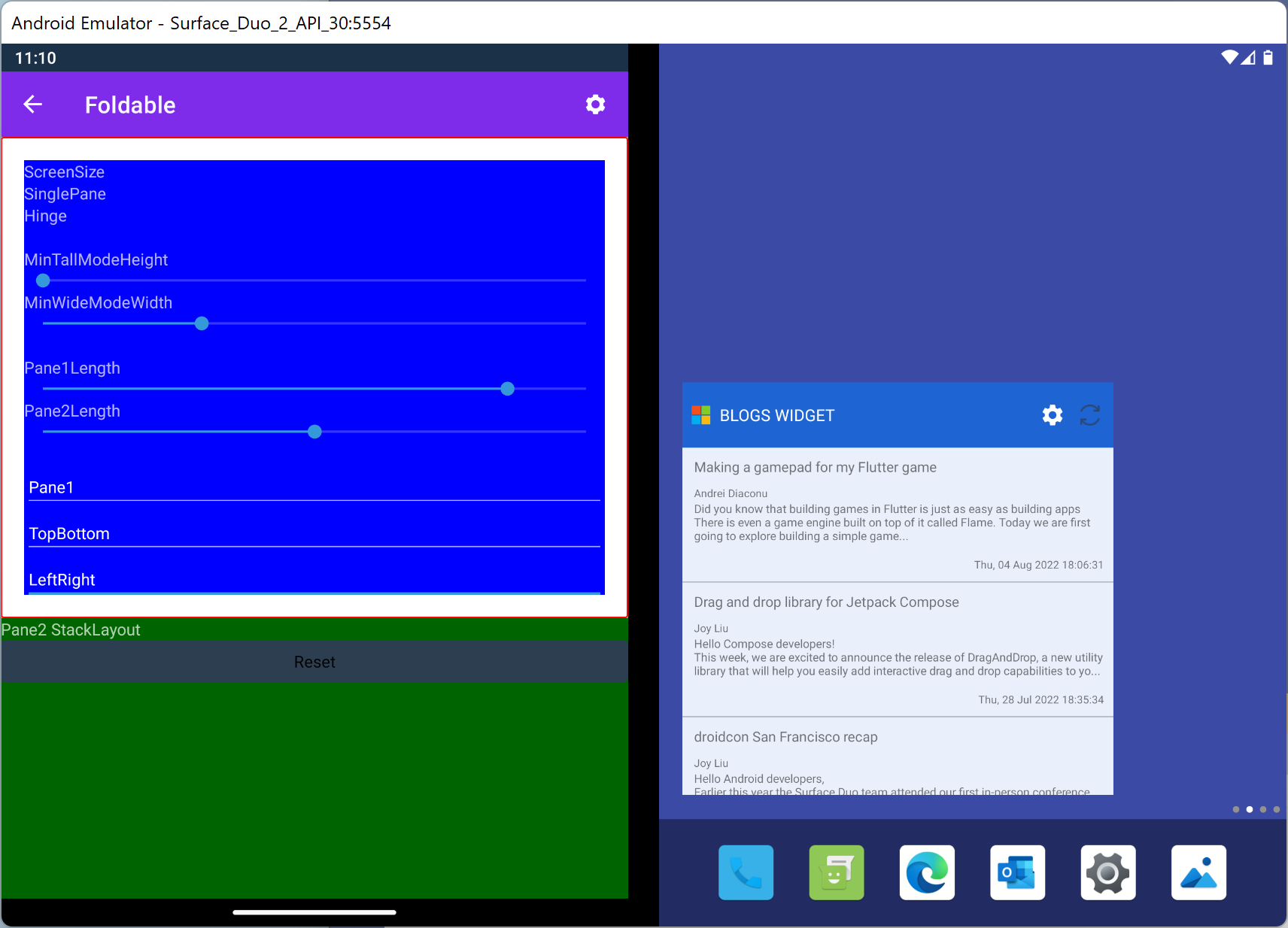

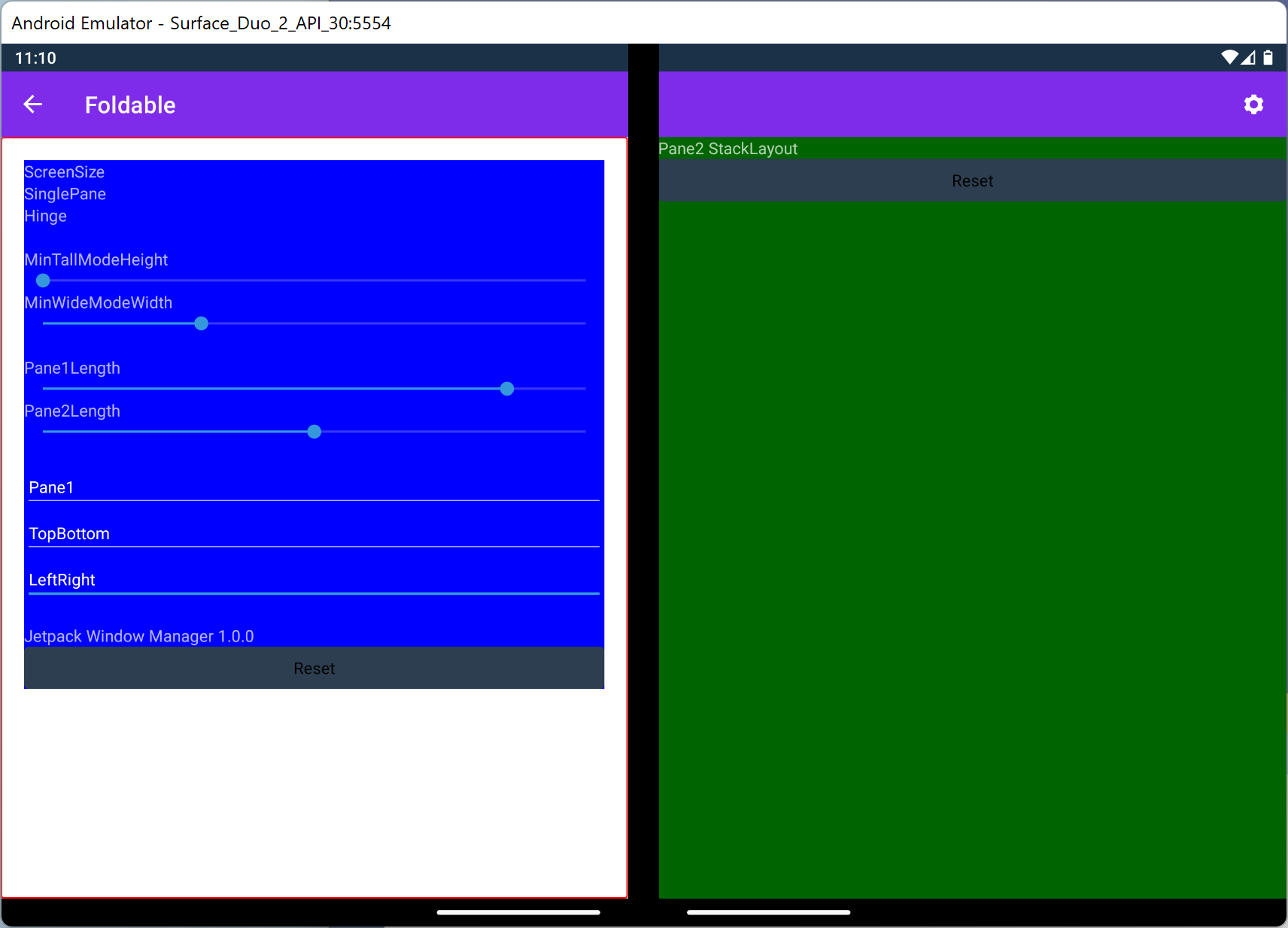

FWIW here's some screenshot of the sample on dual and single screens
